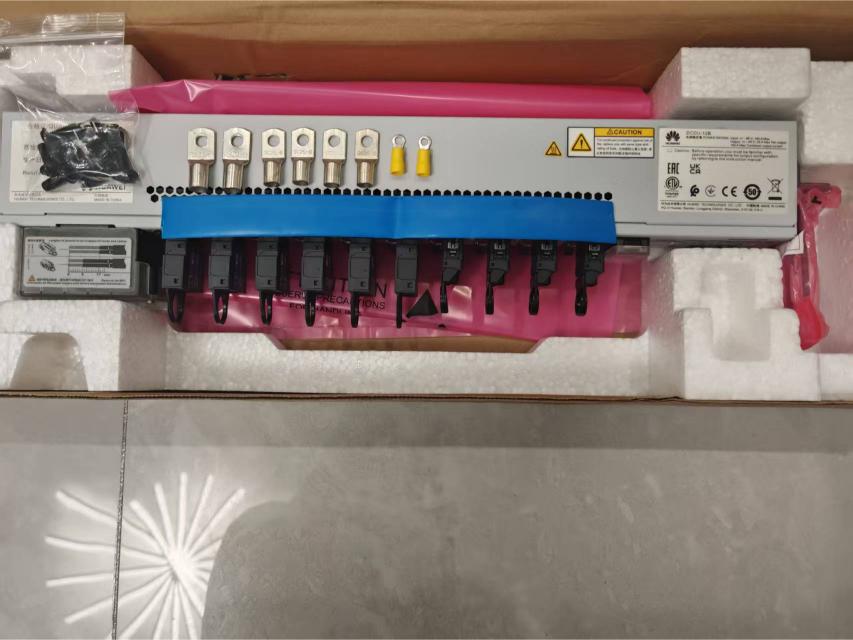

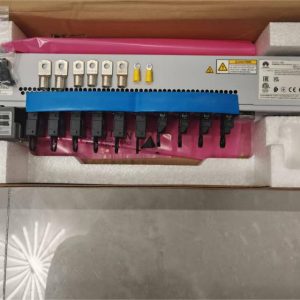

Huawei DCDU-12B is a DC Power Distribution Unit manufactured by Huawei. It is primarily designed to provide stable and reliable -48V DC power for communication equipment (such as BBU, RRU, etc.). Below are its core parameters and functions:
Basic Parameters
Input: -48V DC, supports 180A or 280A input (requires matching power cable diameter)
Output: 10 channels of -48V DC output, total current 160A
Terminal Configuration: 6 large quick-connect terminals (supports 2.5~10mm² cable) + 4 small quick-connect terminals (supports 2.5~4mm² cable)
Lightning Protection Capability: Differential mode 10kA / Common mode 20kA
Dimensions: 442mm × 42mm × 65mm
Weight: 1.65 kg
Typical Application Scenarios
Communication Equipment Power Supply: Supports power requirements for configurations such as 1 BBU + 6 RRUs + 1 FAN unit, or 4 BBUs + 1 FAN unit.
Equipment Room/Base Station Deployment: Suitable for 4G base stations, data centers, and other scenarios, offering space savings and ease of maintenance.
Item Condition: OPEN BOX
For any other requirements, please feel free to contact us. Thank you!
