Configured with 16 C+ /C++ Optical Modules

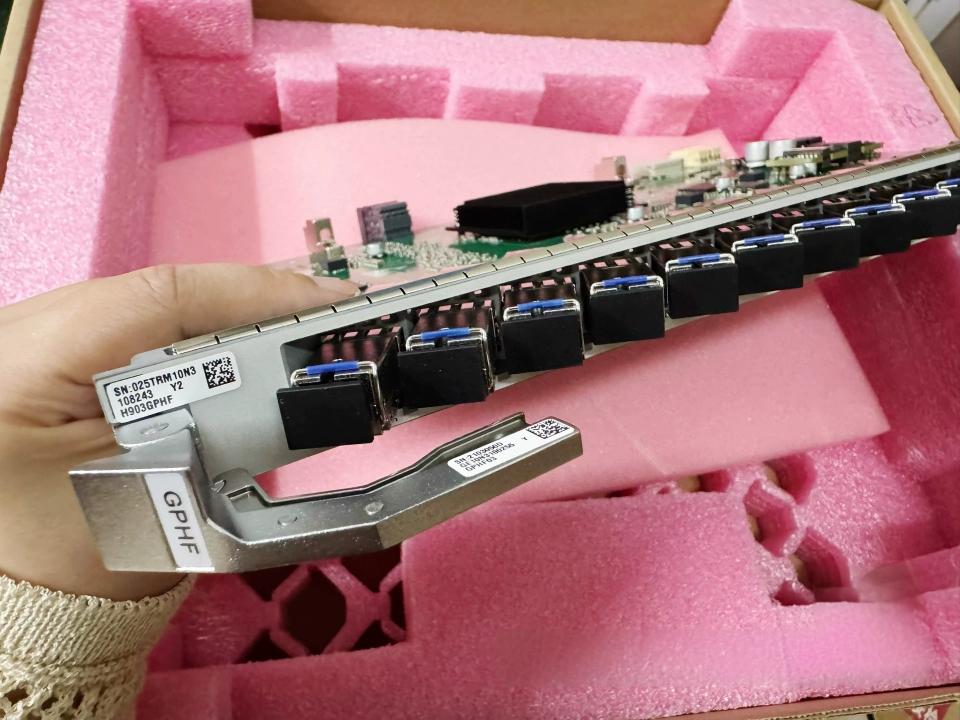

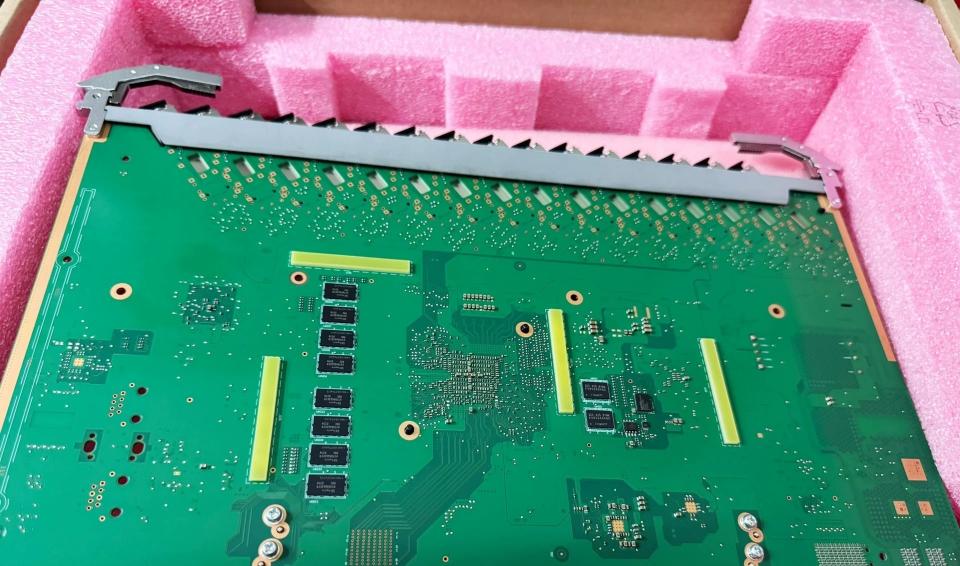

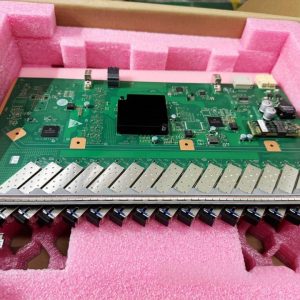

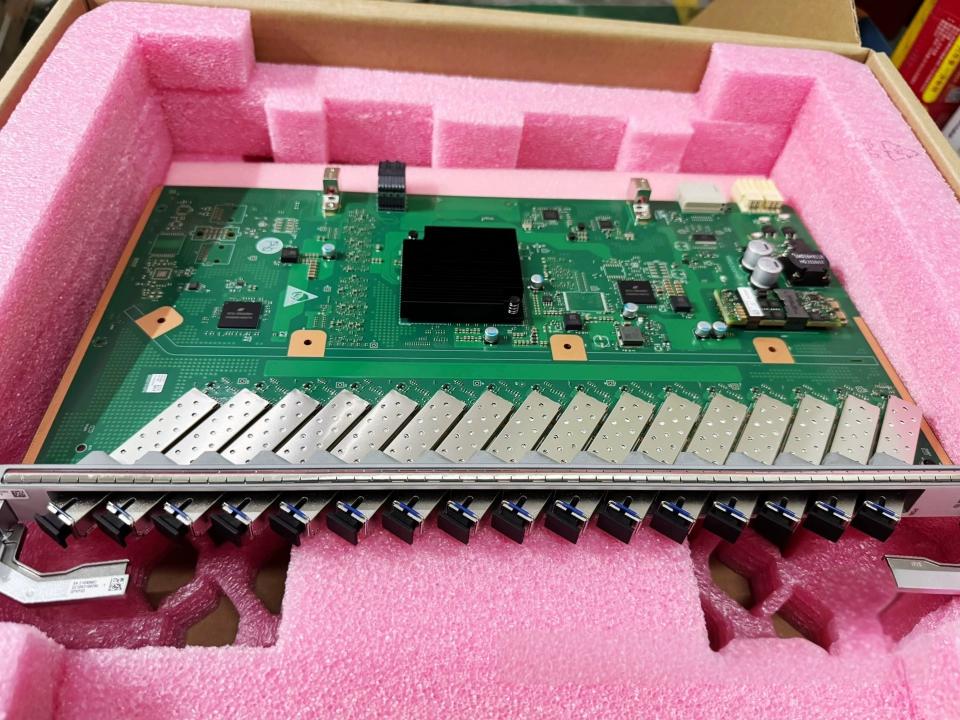

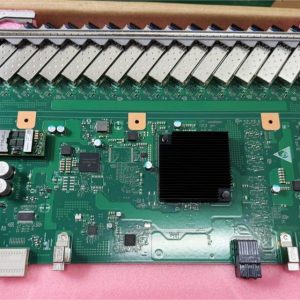

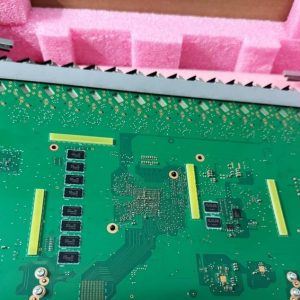

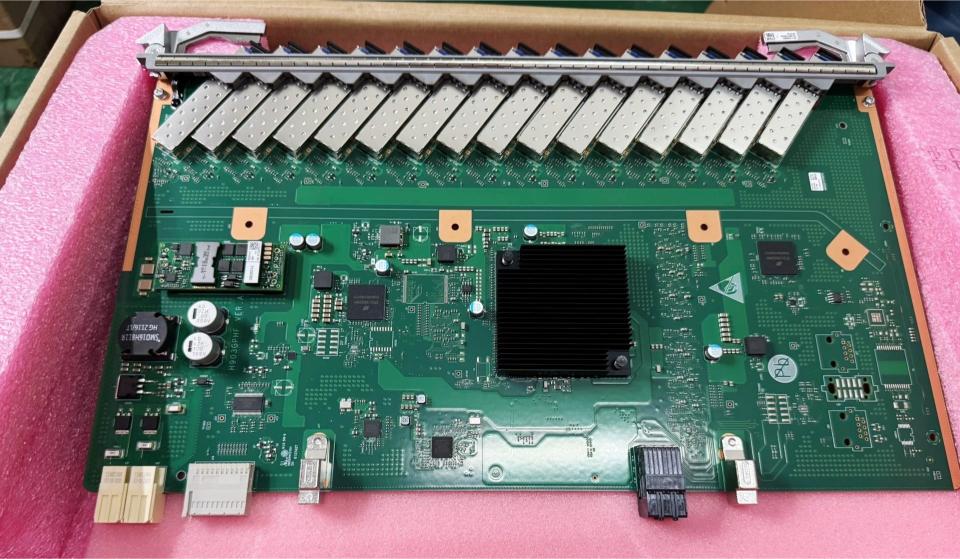

Huawei GPHF GPON Interface Board
The GPHF is a 16-port GPON interface board designed for Huawei MA5800-X2/X7/X15/X17 OLT equipment. It supports both C+ and C++ optical modules and is suitable for fiber access network deployment.
Key Specifications
Port Count: 16 GPON ports
Optical Module Types: C+ (single-fiber bidirectional, 1490nm/1310nm wavelength) or C++ (dual-fiber, 1490nm/1310nm wavelength)
Transmission Rate: 2.488 Gbit/s (downstream), 1.244 Gbit/s (upstream)
Optical Power Range: Output 3.00~7.00 dBm, Receive Sensitivity -32.00 dBm
Operating Temperature: -40°C to +65°C
Dimensions: 23.3mm × 257.9mm × 399.2mm
Compatible Equipment
Huawei MA5800 series OLT: X2, X7, X15, X17 models
Supports 1:128 split ratio, compatible with GPON/XG-PON hybrid networking
Item Condition: OPEN BOX
For any other requirements, please feel free to contact us. Thank you!
