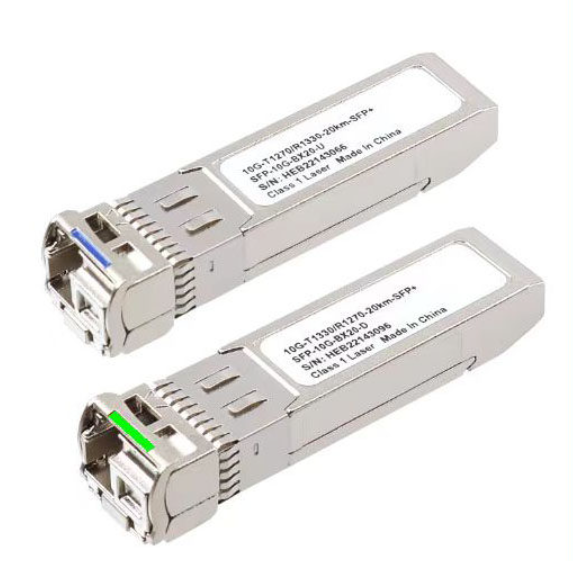

SFP+10G SM BIDI Optical Transceiver (10/20/40/60/80km, 1270nm/1330nm) – Compatible with MikroTik

Product Overview
This product is a standard SFP+ 10G Bi-Directional (BIDI) optical transceiver. Using single-fiber bidirectional technology, it enables simultaneous data transmission and reception over a single strand of single-mode fiber, reducing fiber usage by 50% compared to traditional dual-fiber solutions. The module supports 10Gbps data rates with a maximum transmission distance of up to 60 kilometers, making it ideal for long-haul, high-bandwidth backbone and metropolitan area network interconnections.

Key Features

• Form Factor: SFP+, compliant with SFF-8431

• Data Rate: 10.3125Gbps (compatible with 10G Ethernet)

• Transmission Distance: 10/20/40/60/80km (on single-mode fiber G.652)

• Bidirectional Technology: BIDI, saves fiber resources

• Wavelengths:

  • Side A: TX1270nm / RX1330nm

  • Side B: TX1330nm / RX1270nm

  • Must be used in pairs (Side A with Side B)

• Fiber Type: Single-Mode (9/125μm)

• Connector: SM  LC Simplex

• Operating Temperature: 0°C to 70°C (Commercial grade) / Industrial grade optional

• Digital Diagnostic Monitoring (DDM): Supports real-time monitoring of voltage, temperature, optical power, etc.

Compatibility

• Fully compatible with MikroTik switches, routers, and network interface cards (such as CCR, CRS, RB series)

• Also compatible with standard SFP+ ports from mainstream brands including Cisco, Ubiquiti, Huawei, H3C, and more

• Low power consumption, plug-and-play, no additional configuration required

Applications

• Data center interconnections between buildings or sites

• Metropolitan area network edge aggregation and long-haul uplinks

• Carrier access or aggregation layer link expansion

• High-bandwidth connectivity in scenarios with limited fiber availability

Usage Note
This module requires pairing Side A with Side B for proper operation. When ordering, please select the appropriate side type according to your needs (e.g., use a Side A module on one end of the link and a Side B module on the other) to ensure the optical link is correctly established.
