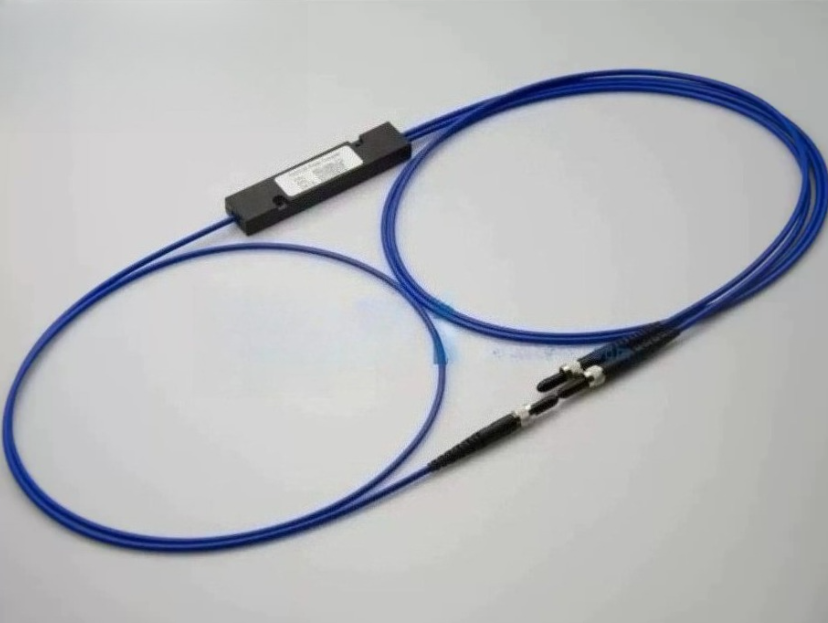

Product Introduction – Multimode Splitter：
The multimode fiber splitter is a fiber optic device manufactured using Fused Biconical Taper (FBT) technology. Multiple are stripped of their coating, arranged in a specific configuration, and then fused together under high heat while being stretched. The splitting ratio is monitored in real time, and the tapering process is terminated once the target ratio is achieved.
Key Features：
1、Excellent coupling efficiency and high light transmission
2、Good fatigue resistance for long‑term reliability
3、Available with large‑core power in various specifications

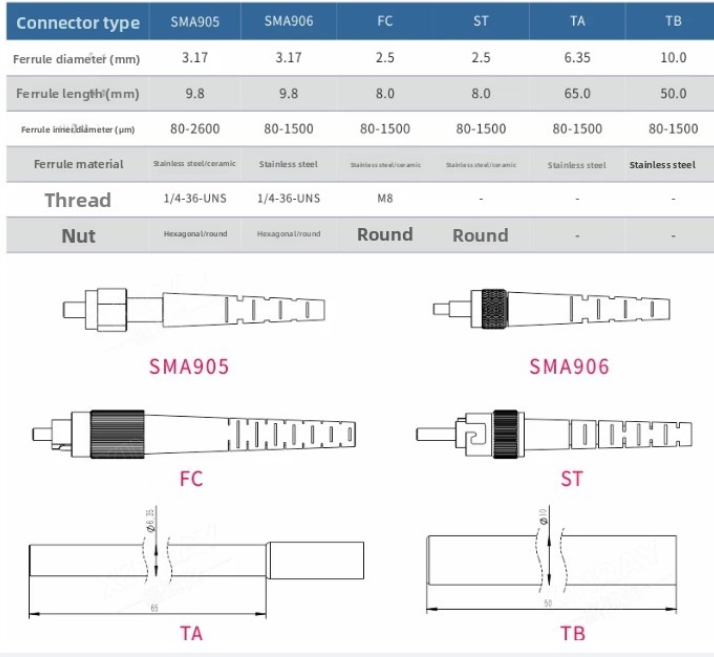

4、Wide range of connector options, custom configurations available upon request
5、Fiber core diameter options from 6μm to 400μm
6、Operating wavelength range from 190nm to 2500nm
Applications：
1、Optical experiments, research, and measurement
2、Multi‑point illumination, light combining, and splitting
3、Medical optical detection instruments
4、Industrial silicon wafer inspection, liquid analysis, and spectral detection
5、Food safety testing
6、Automotive, aerospace, and military applications
